LINE MAGNETIC LM 845 IA Vacuum Tube Integrated Amplifier

0 Reviews Sold: 0

345,000.00

The LM-845IA is a quality upgrade of the old LM-518 amplifier. It delivers twenty-two watts per channel. Single ended design, Pure Class A, Integrated Stereo Amplifier with 845 output power tubes. The rear-illuminated front panel meter is used to adjust the polarization of the tubes.

The use of high quality components (Realcap capacitors, ALPS potentiometer) wired in the air for the most part is the guarantee of exemplary reliability. Its transformers output are of EI type, specially disigned for power supply.

Its power and current capacity allows it to manage a very wide range of speakers. The use of the legendary triode 845 offers a listening to an unusual musicality.

Product Enquiry Form

Need assistance deciding on this product?

☎ +919321185152

LINE MAGNETIC LM 845 IA Vacuum Tube Integrated Amplifier

345,000.00

Add to cart
Buy Now

✔ FREE Shipping to most locations in India
✔ Official Manufacturers Warranty valid in India
✔ Brand NEW in Box & 100% Original
✔ Authorised Official Distributer / Dealer
Description

Product Description

Features

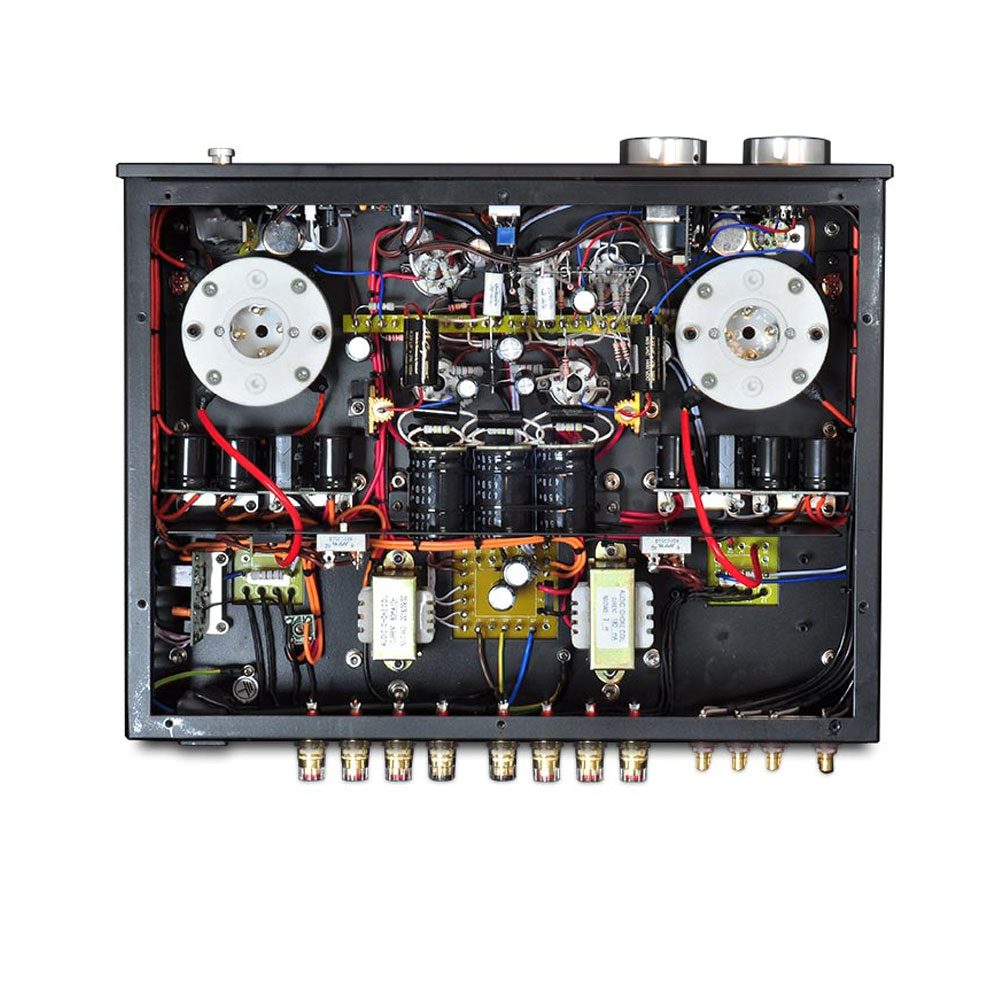

  • Hand-made construction with the finest point-to-point wiring
  • Bias control is accessible on top of the amplifier panel with true ampere meter.
  • Analog Inputs: 3 line inputs Load impedance: 4/8/16Ω
  • SoftStart and time-delay circuit. (30 seconds)
  • Specially designed EI transformer for power supply
  • Two EI output transformers with wide bandwidth are applied
  • ALPS volume control and Realcap capacitors are applied.
  • Metal and removable tube guard cage Infrared
  • Remote control
  • Load impedance for HP to connect: 4/8/16Ω

Some Highlights

  • Single ended design
  • Class A amplifier
  • Point-to-point wiring
  • High quality components

Tubes used in this amplifier

  • Input stage: 2x 12AX7
  • Rectifier: 1x 5AR4
  • Drivers: 2x 6P3P
  • Power stage: 2x 845 « single-ended » design and pure class A

Tubes basic

  • 12AX7
  • 12AU7
  • EL34

Included Accessories

  • 2x Fuses
  • 1x Remote control
  • 2x Battery AAA
  • 1x Detachable power cord
  • 1x Manual
  • 1x Warranty Card

Common Replacements

  • Dimensions (L x H x P) : 365 x 250 x 340 mm
  • Weight: 35Kg

Generality

  • 12AX7EH, ECC83, E83CC, CV4004, ECC803, 5751
  •  ECC82, 12AU7EH, 5814, 6189, CV4003
  • 6CA7

Finish: Black

Specifications
  • Class A amplifier – 2x22W RMS
  • THD: 1% (1kHz)
  • Signal/Noise ratio: 87dB (Weighted A)
  • Frequency response  (-1.5dB): 10 – 50.000 Hz
  • Sensitivity: 220 mV (Built-in Mode)
  • Input Impedance: 100kΩ
