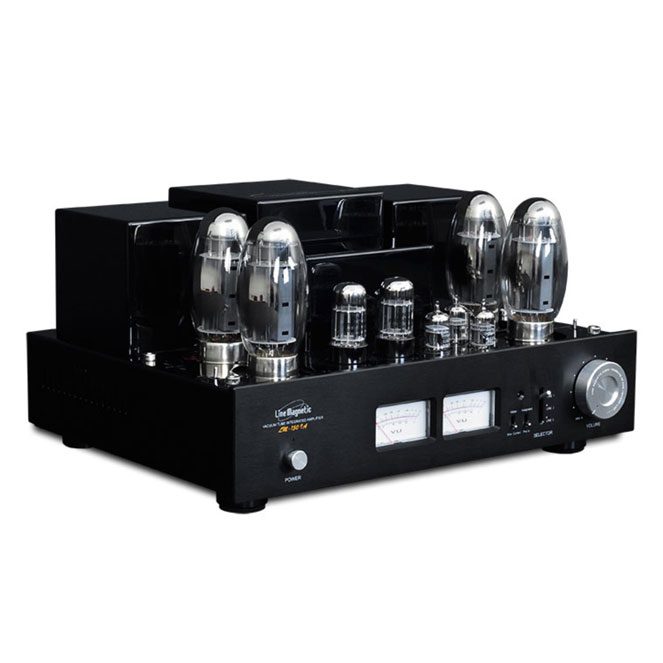

LINE MAGNETIC LM-150IA Vaccum Tube Integrated Amplifier KT150 – 2*100W

0 Reviews Sold: 0

388,000.00

The Line Magnetic LM-150iA is a push-pull, polarised Class AB Integrated Stereo Amplifier that uses for its power stage 4x KT150 delivering a power of 2x100W RMS.
12AX7 input tubes, 12AU7 rectifier and 6SN7 drivers.

Tubes we choose are Shuguang 12AX7, Shuguang 12AU7, Electro Harmonix 6SN7 and Tung-sol KT150. No matter it is the Pre-stage or power stage of tubes we select and choose the best matching ones to use same unit of amplifier to get the best sound quality out of it.

Different from other inputs Pre-In offers you a possibility to connect to some other Preamplifier so that you can the LM-150IA as a power amplifier. User bias control has been used for bias adjustement including 2 vu-meters. Bias adjustment and control is made easy with two top-mounted bias meters.



With specially designed EI transformers for power supply and output with wide bandwidth, hand made construction and the finest point-to-point wiring; this amplifier with this much power will drive virtually any demanding speaker available to produce fantastic results.

Product Enquiry Form

Need assistance deciding on this product?

☎ +919321185152

LINE MAGNETIC LM-150IA Vaccum Tube Integrated Amplifier KT150 – 2*100W

388,000.00

Add to cart
Buy Now

✔ FREE Shipping to most locations in India
✔ Official Manufacturers Warranty valid in India
✔ Brand NEW in Box & 100% Original
✔ Authorised Official Distributer / Dealer

Line Magnetic LM 1501 IA Tube Amplifier

Features

  • Hand-made construction with the finest point-to-point wiring
  • Easy bias control with two top-mounted meters.
  • Soft start and time-delay circuit – 30 seconds
  • EI power supply and output transformers with wide bandwidth
  • ALPS volume control and Realcap capacitors
  • Metal and removable tube guard cage
  • Infrared Remote control

Some Highlights

  • Push-pull design
  • Class AB amplifier
  • Point-to-point wiring
  • High-quality components

Tubes used in this amplifier

  • Input stage: 2x 12AX7 (Shuguang)
  • Rectifier: 1x 12AU7 (Shuguang)
  • Drivers: 2x 6SN7 (Electro Harmonix)
  • Power stage: 4x KT150 (Tung-sol)

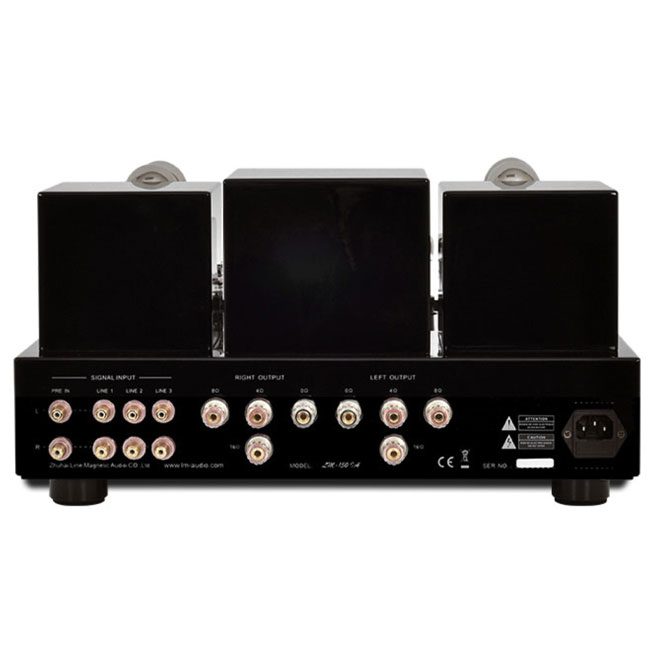

Connectors

  • 3x Line inputs RCA (pair)
  • 1x Pré-in input
  • 2x Screw terminals compatible with banana plugs

Tubes supplied

  • Input stage: 2x 12AX7
  • Rectifier: 1x 12AU7
  • Drivers: 2x 6SN7 (Electro Harmonix)
  • Power stage: 4x KT150 (Tung-sol)
  • Hand-made construction with the finest point-to-point wiring
  • Bias control is accessible on top of the amplifier panel with true ampere meter.
  • Analog Inputs: 3 line inputs, 1 by-pass input
  • Load impedance: 4/8/16Ω
  • SoftStart and time-delay circuit. (30 seconds)
  • Specially designed EI transformer for power supply
  • Two EI output transformers with wide bandwidth are applied
  • ALPS volume control and Realcap capacitors are applied.

Included Accessories

  • 2x Fuses
  • 1x Remote control
  • 1x Detachable power cord
  • 1x Manual

Generality

  • Dimensions (L x H x P): 430 x 217 x 355 mm
  • Weight: 32.5 Kg

Finish: Black

  • Class AB amplifier
  • THD: 1% (1kHz)
  • Signal/Noise ratio: 87dB (Weighted A)
  • Frequency response (-1.5dB): 10 – 50.000 Hz
  • Sensitivity: 220 mV (Mode intégré)
  • Input impedance: 100kΩ
  • Load impedance for HP to connect: 4/8/16Ω
