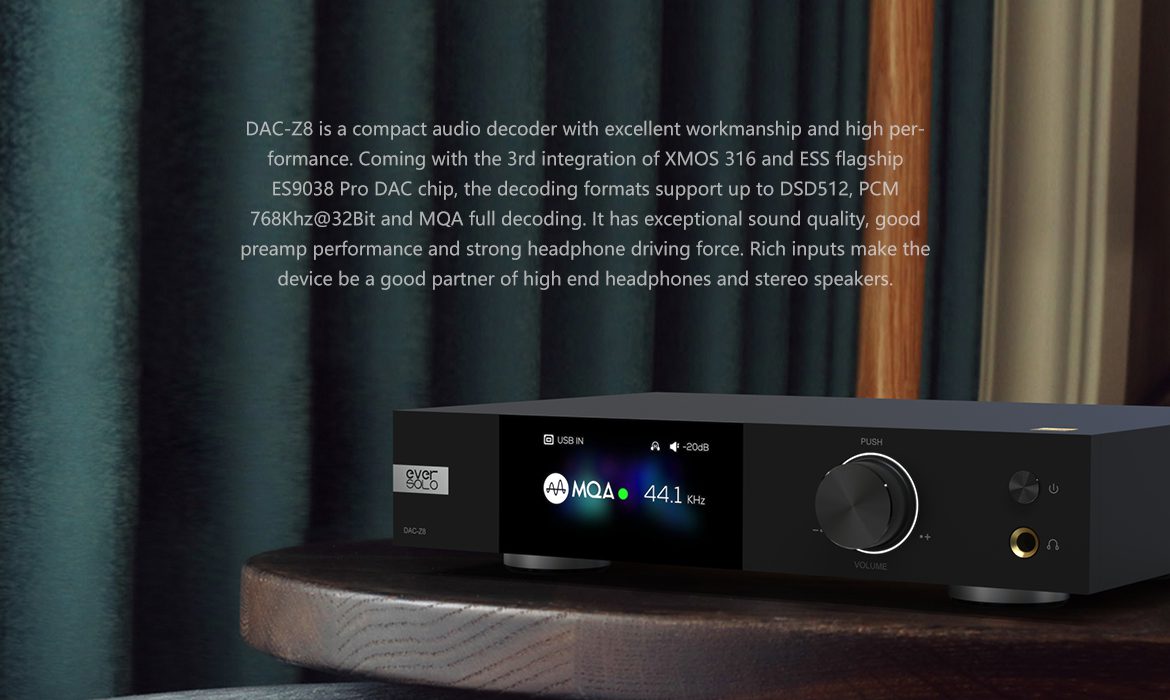

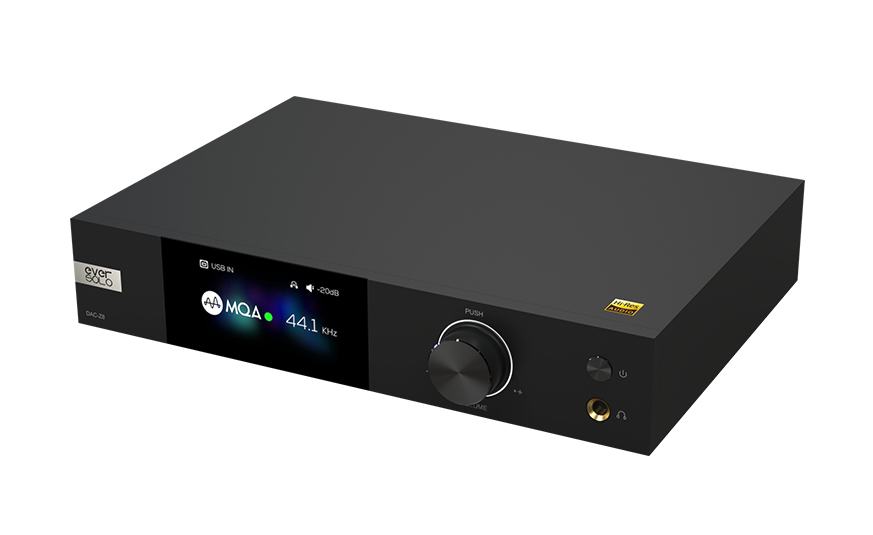

Name: Eversolo DAC Z8 ( Ref Digital to Analog Converter)
Brand: Eversolo
SKU: 5622
Availability: InStock

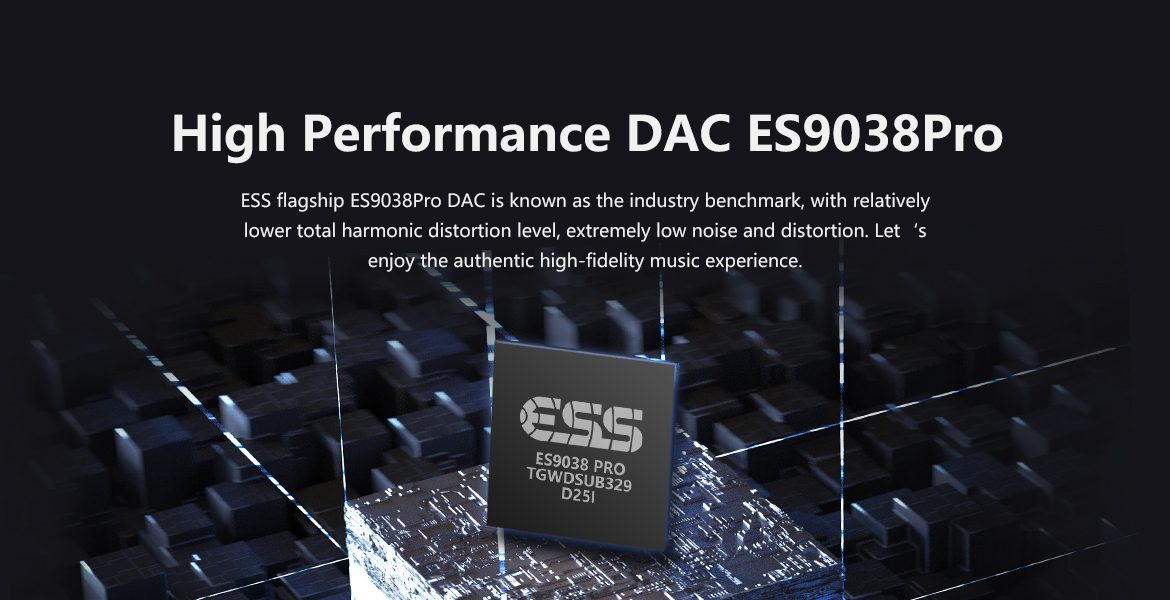

ESS Sabre flagship ES9038Pro 32 bits DA converter chip.
The 3rd generation XMOS XU316 with higher performance and faster speed.

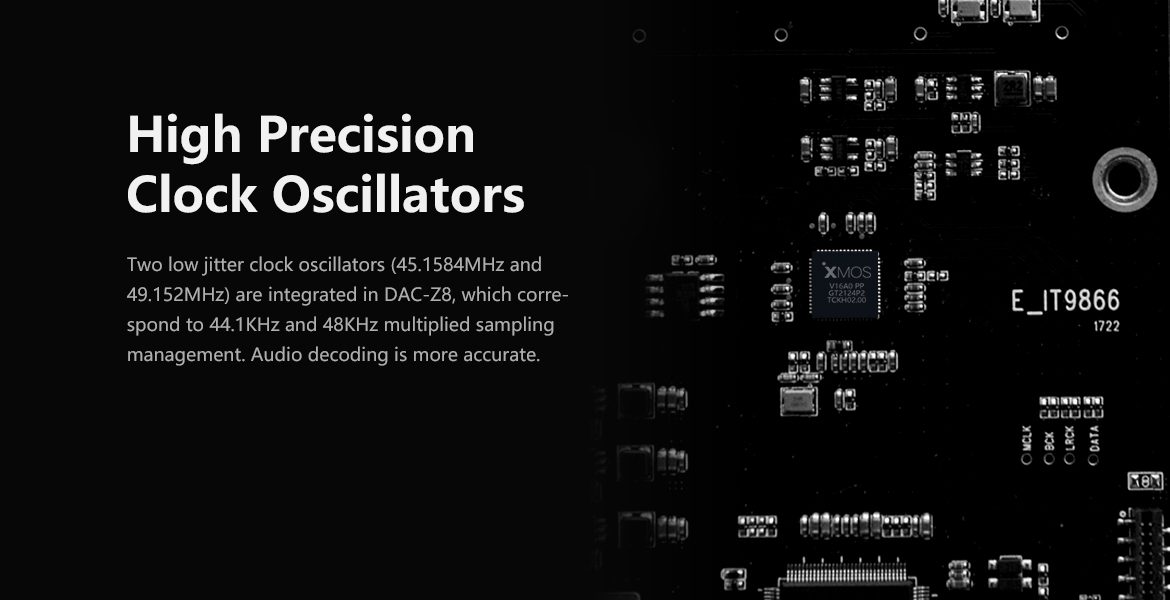

High precision, low jitter dual clock oscillators synchronous processing.

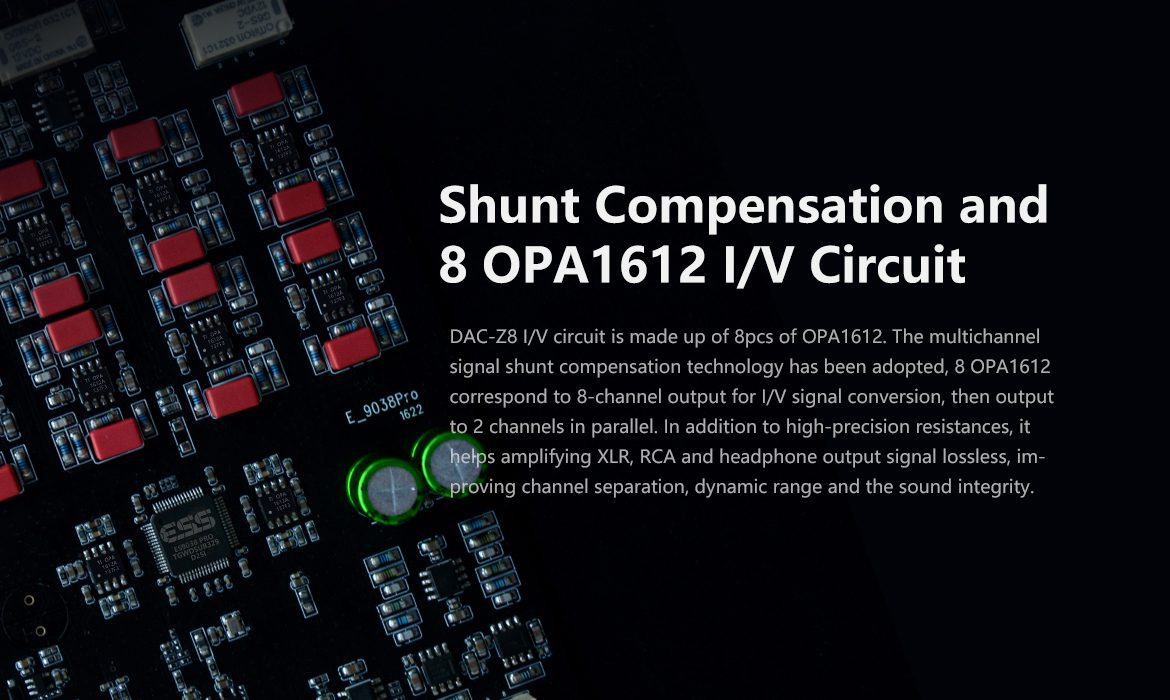

OPA1612*8 I/V operational amplifier circuit, 8-channel shunt compensation technology.
Up to DSD512 Native, PCM768KHz@32Bit decoding.
Optical, Coaxial and USB support MQA full decoding and rendering.
Qualcomm QCC5125 Bluetooth 5.0 module supports APTX HD/LDAC protocol.

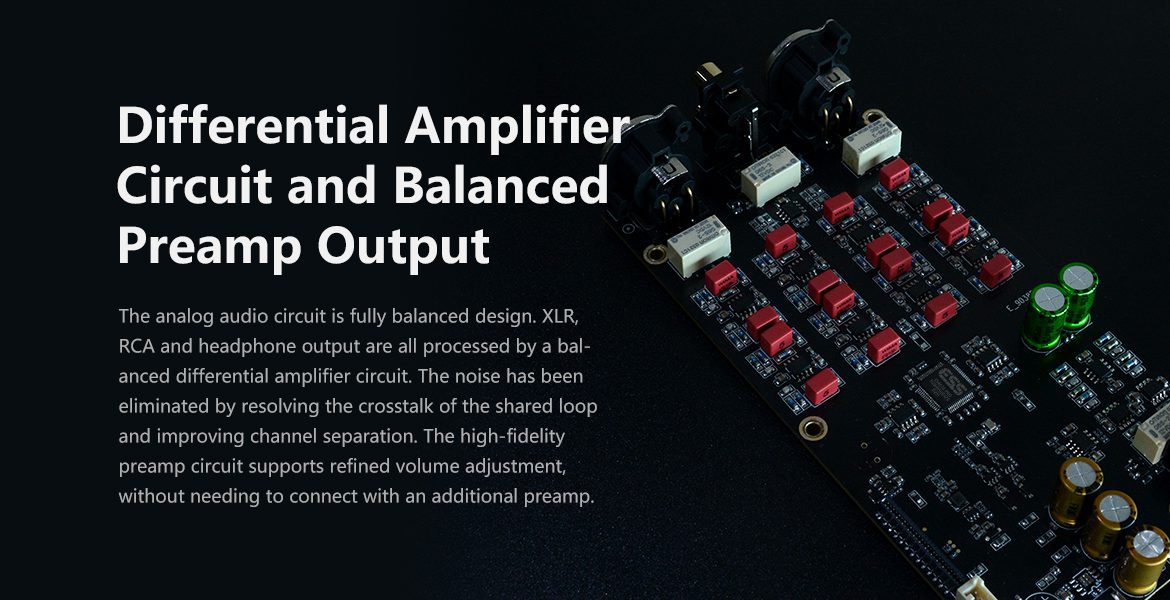

Fully balanced audio architecture, differential amplifier circuit and professional calibration.

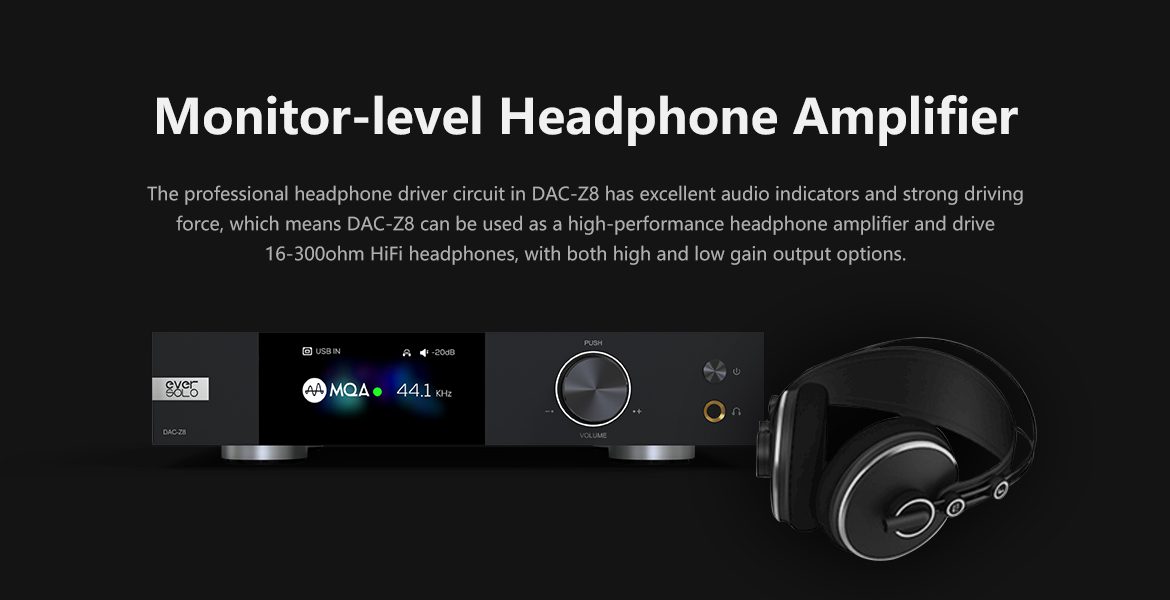

High-performance headphone amp output, 16-300 ohm headphone driver.

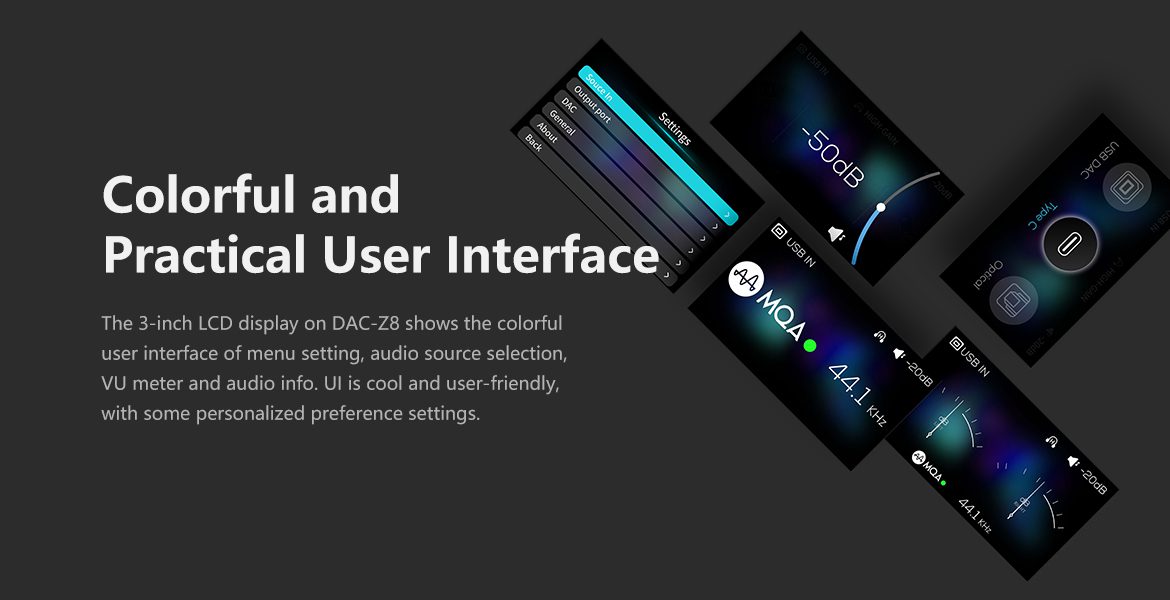

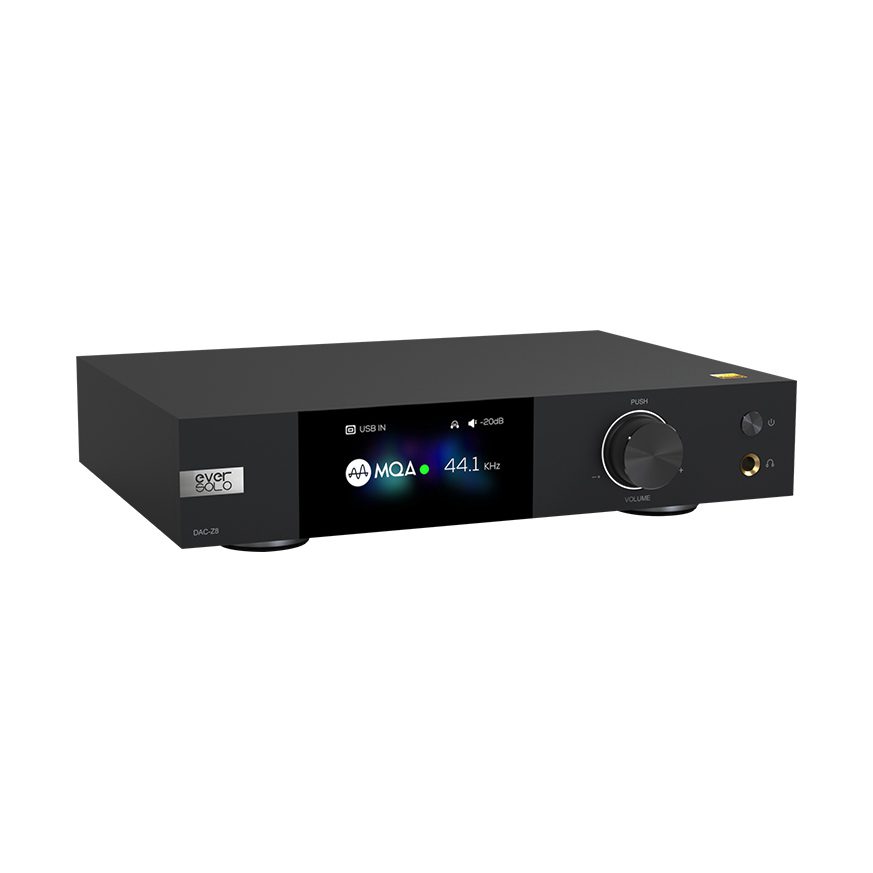

3-inch LCD screen, with diverse VU meter modes.

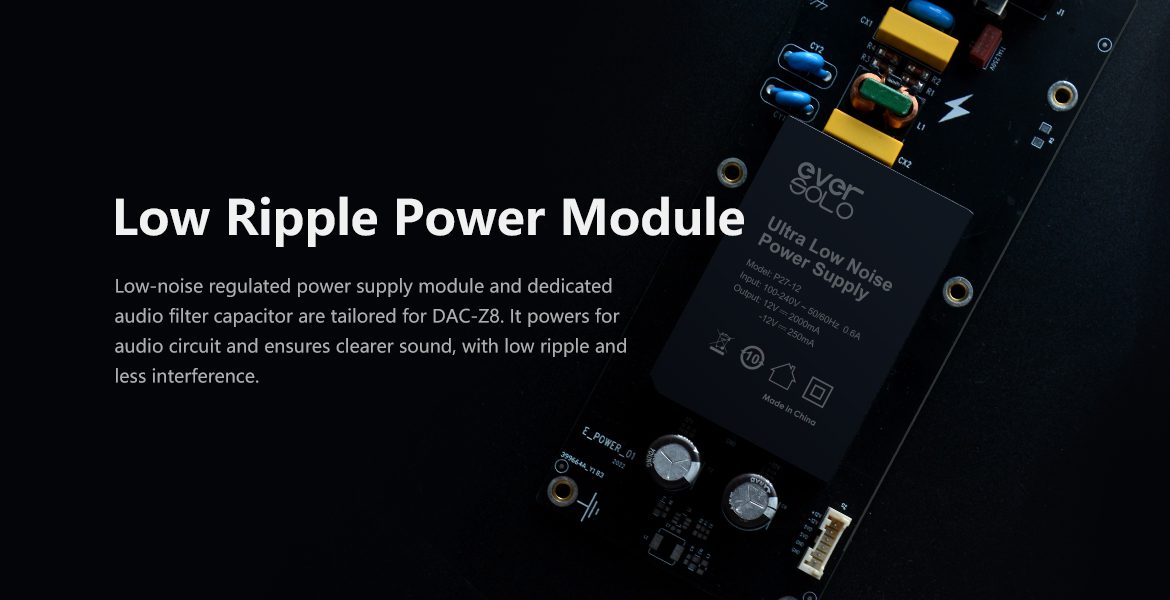

Low ripple power supply to ensure a purer power source.
Exclusive mobile phone controller APP for global control.

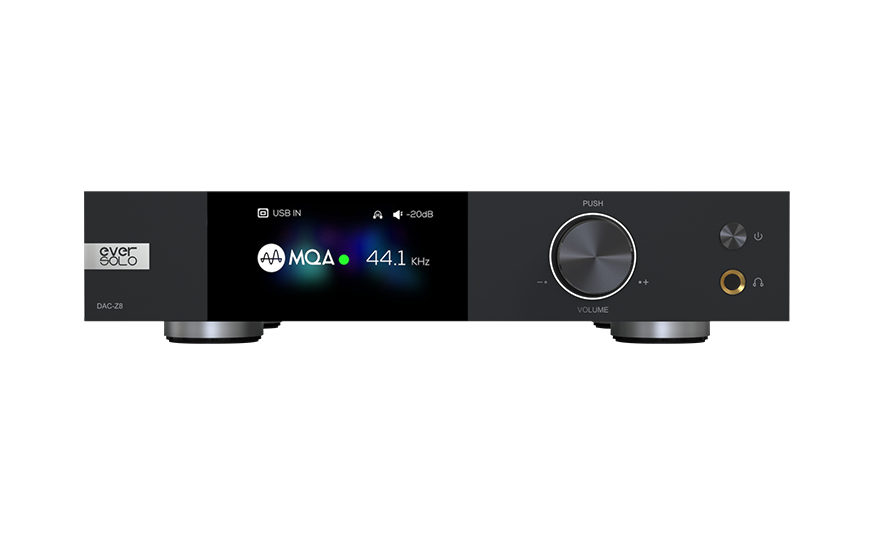

Model – EverSolo DAC-Z8
Display Screen – 3-inch LCD Screen

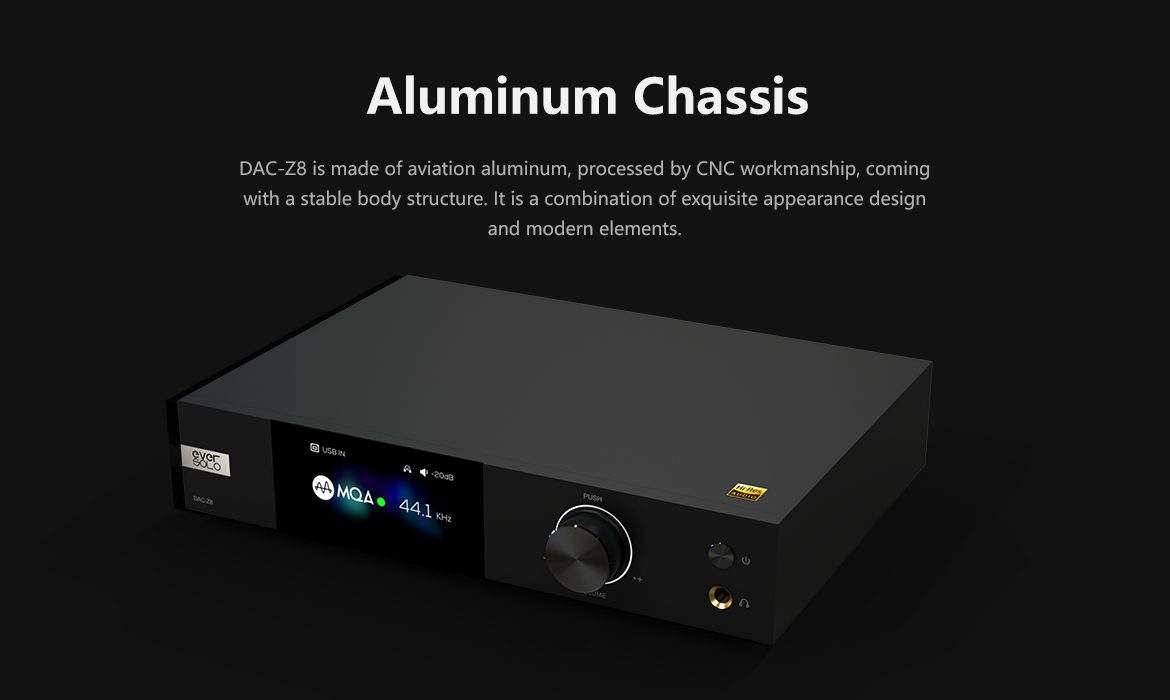

Chassis – Aviation aluminum alloy
DAC – ES 9038Pro
Audio Processor – XMOS XU316
OPA Chip – OPA1612*10
Power Supply – Low noise switching power supply
Bluetooth Audio Input – Qualcomm QCC5125 Bluetooth module, BT5.0 Support SBC/AAC
Bluetooth protocol

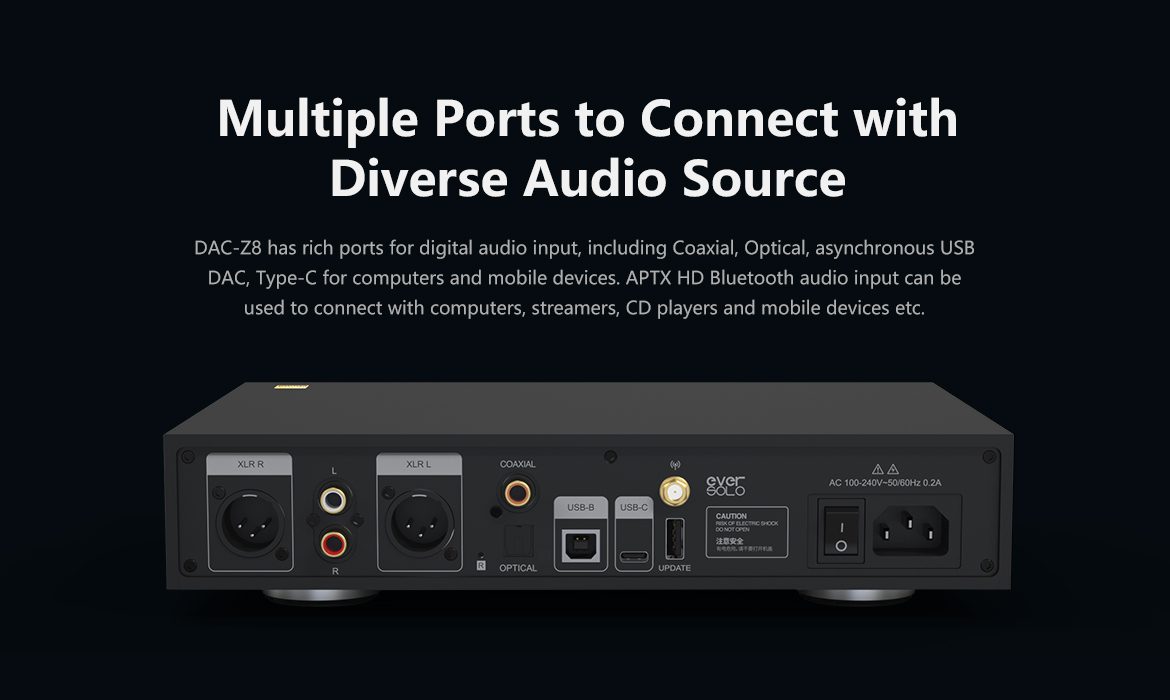

USB-B DAC Input -Compatible with Windows (7, 10), Mac, Android and IOS
Up to stereo DSD512, PCM 768KHz 32Bit and MQA –
USB-C DAC Input
Compatible with Windows (7, 10), Mac, Android and IOS
Up to stereo DSD512, PCM 768KHz 32Bit, MQA
Optical Audio Input – Up to stereo PCM 192KHz 24Bit, DSD64 Dop and MQA
Coaxial Audio Input – Up to stereo PCM 192KHz 24Bit, DSD64 Dop and MQA

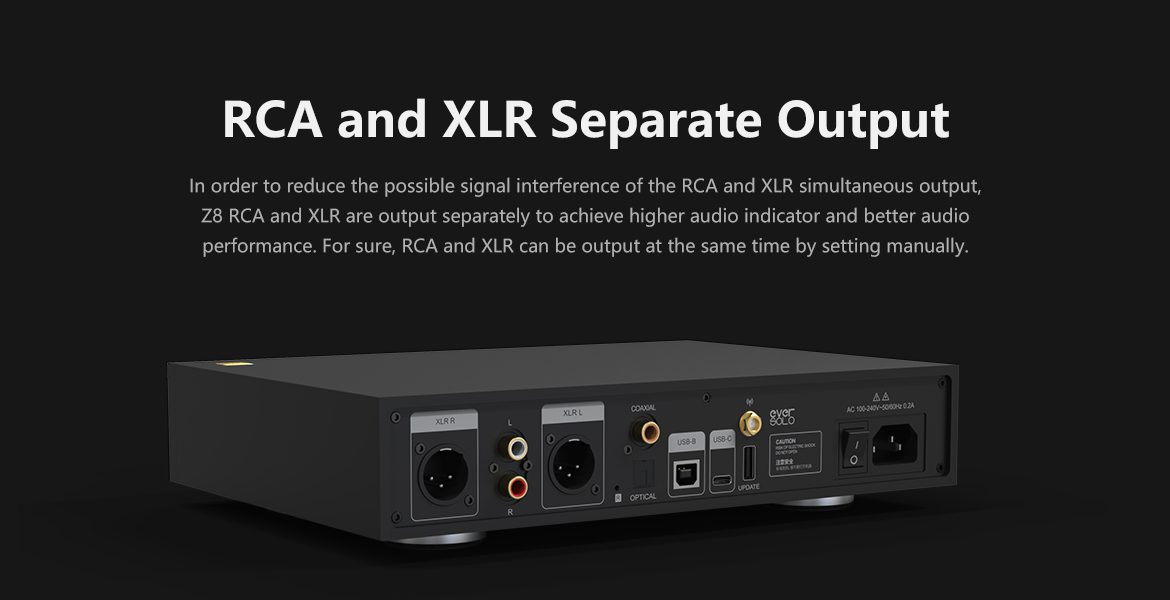

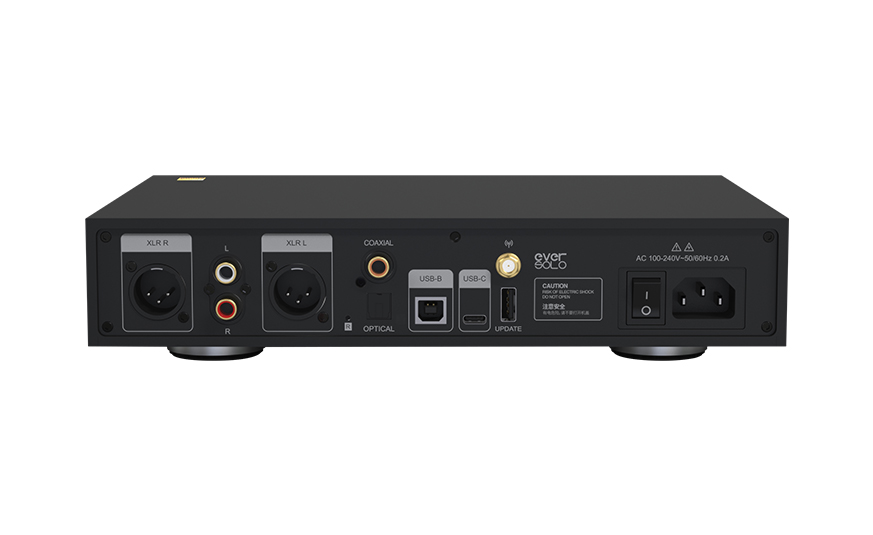

Analog Audio Output – Preamp output: XLR (balanced), RCA;
Headphone amp output: 6.35mm single-ended
USB Port – USB2.0*1（only for firmware upgrade）

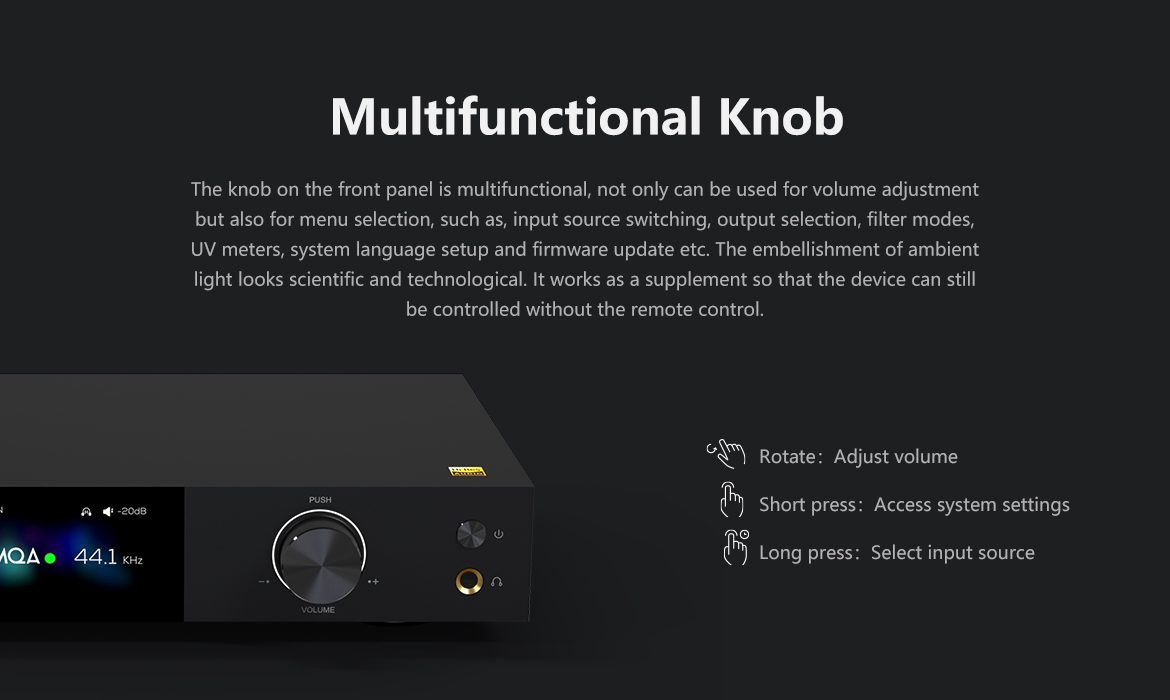

Control Methods – Remote control, mobile APP control and knob control
Headphone Impedance – 16-300Ω （low gain mode:16-32Ω/high gain mode: 32-300Ω）

XLR Audio Characteristics

Output level(Vrms): 4.1Vrms@0dBFS
THD+N@A-wt: 0.000062%@1kHz（-124dB@1kHz）
THD+N@No-wt：0.000069%@1kHz（-123dB@1kHz）
Noise@No-wt: <1.2uVrms
SNR @No-wt: 133dB@1kHz
Frequency response: 20Hz-20kHz(±0.1dB)
Crosstalk: -130dB@1kHz
DNR @No-wt: 133dB@1kHz

RCA Audio Characteristics

Output level (Vrms): 2.3Vrms@0dBFS
THD+N@A-wt: 0.000086%@1kHz(-121dB@1kHz)
THD+)@No-wt: 0.000097%@1kHz(-120dB@1kHz)
Noise @No-wt: <1.5uVrms
SNR @No-wt: 126dB@1kHz
Frequency response: 20Hz-20kHz(±0.1dB)
Crosstalk: -123dB@1kHz
DNR@No-wt: 126dB@1kHz

Headphone
(low gain mode)
Output level(Vrms): 1.2Vrms@0dBFS
Maximum undistorted power: 45 mW@32Ω
THD+N@A-wt: 0.00015%@1kHz(-116dB@1kHz)
THD+N@No-wt: 0.00018%@1kHz(-115dB@1kHz)
Noise @No-wt: <2uVrms
SNR@No-wt: 124dB@1kHz
Frequency response: 20Hz-20kHz(±0.1dB)
DNR @No-wt: 119dB@1kHz

Headphone
(high gain mode)
Output level(Vrms): 2.8Vrms@0dBFS
Maximum undistorted power: 26 mW@300Ω
THD+N@A-wt: 0.00016%@1kHz(-116dB@1kHz)
THD+N@No-wt: 0.00016%@1kHz(-116dB@1kHz)
Noise@No-wt: <2uVrms
SNR@No-wt: 124dB@1kHz
Frequency response): 20Hz-20kHz(±0.1dB)
DNR @No-wt: 124dB@1kHz

Power Input
AC 110~240V 50/60Hz Max 0.35A
Rated Power – 9W

Dimensions
270mm(W) * 187mm(D)* 50mm(H)

Packing List
Remote control*1, power cable*1, USB cable*1, product manual*1
