Gustard X30 DAC & Reference Network Player
Gustard X30 DAC & Reference Network Player - Image 2
Gustard X30 DAC & Reference Network Player - Image 3
Gustard X30 DAC & Reference Network Player - Image 4
Gustard X30 DAC & Reference Network Player - Image 5
Gustard X30 DAC & Reference Network Player - Image 6
Gustard X30 DAC & Reference Network Player - Image 7

Gustard X30 DAC & Reference Network Player

0 Reviews Sold: 0

Current price is: ₹289,000.00. Original price was: ₹300,000.00.

Gustard X30 – The Best Delta Sigma DAC & A High-Quality Network Streaming Decoder

“The Gustard X30 is a masterclass in audio engineering and while it’s not exactly affordable, it’s an investment that promises extraordinary returns.”

The Gustard X30 isn’t just another network streaming decoder — it’s a statement in digital audio excellence. With four flagship ES9039SPRO DAC chips working in harmony, the X30 unveils layers of detail, texture, and realism that bring your music to life. High-resolution support up to PCM 32-bit/768kHz, DSD512, and full MQA decoding ensures every format is rendered with breathtaking precision.

Behind the scenes, Gustard’s uncompromising design shines through: a multi-stage power supply with ES9311Q regulators, dual toroidal transformers, and meticulous FPGA control keep the signal path pure and jitter-free. Add to this a Class A discrete output stage and customizable DSP filters, and you have a device that doesn’t just reproduce music — it makes it personal.

With elegant remote-controlled volume from 0 dB to –90 dB, the X30 combines convenience with audiophile-grade refinement. Simply put, the Gustard X30 is built to astonish.

Product Enquiry Form

Need assistance deciding on this product?

☎ +919321185152

Color
Choose an option
Gustard X30 DAC & Reference Network Player
Add to cart
Buy Now

✔ FREE Shipping to most locations in India
✔ Official Manufacturers Warranty valid in India
✔ Brand NEW in Box & 100% Original
✔ Authorised Official Distributer / Dealer
SKU: N/A Categories: Tags: Brand:

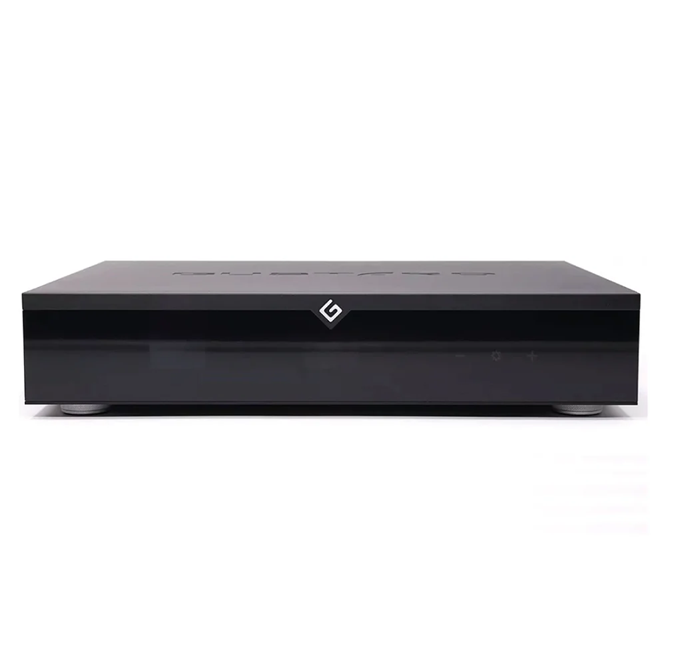

gustard front

Quad ES9039SPRO Flagship DAC Chips

Precision Hi-Res Decoding With Advanced Digital Filtering

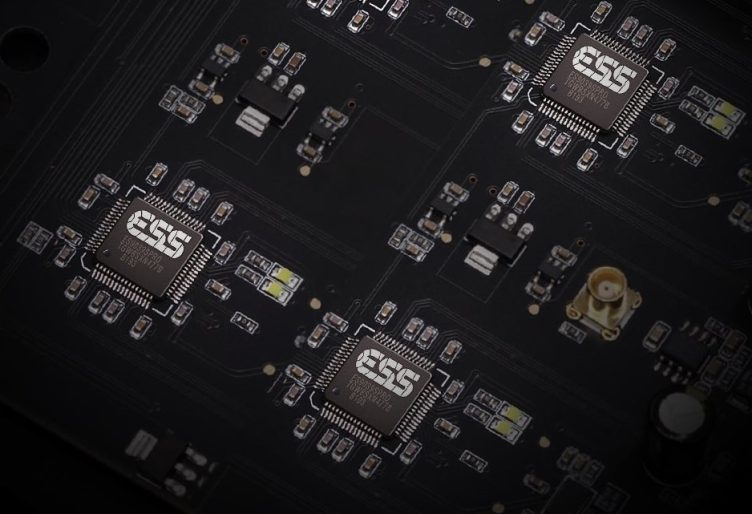

At the heart of the Gustard X30 lies a quad array of ESS’s flagship ES9039SPRO DAC chips. Each channel is powered by two DACs in a fully balanced configuration, ensuring exceptional linearity and channel separation. Signal processing is further refined by a multi-stage digital filtering system built on Analog Devices’ high-performance SHARC DSP platform. This includes advanced anti-aliasing noise algorithms, high-precision 64-bit floating-point operations, frequency upscaling, and noise shaping—delivering an exceptionally clean and natural sound.



The Gustard X30 supports PCM up to 32-bit/768kHz, DSD512, and full MQA decoding, making it future-proof for all modern high-resolution audio formats. An I/V conversion stage and parallel connection circuitry ensure a seamless transition from digital to analogue voltage,

K2 Synthesizer With DSP Filtering & Network Streaming

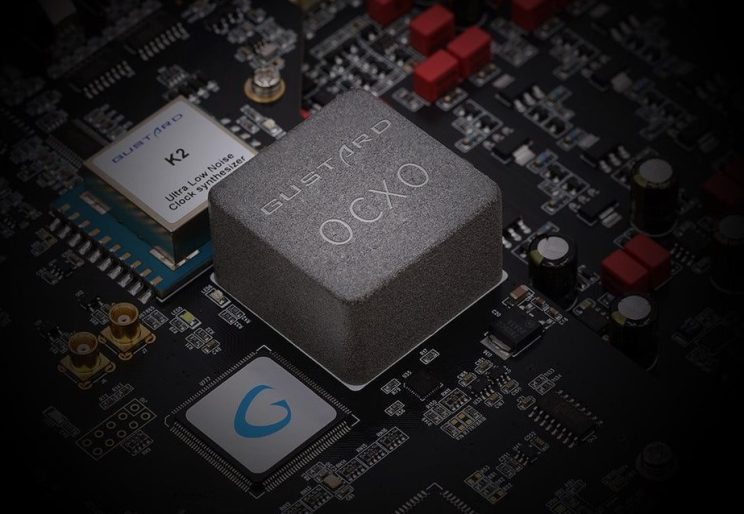

The Gustard X30 employs a high-precision K2 synthesizer paired with a local OCXO clock, or an external 10M clock, to deliver an exceptionally clean and accurate clock signal for hi-res audio decoding. By discarding the front-end clock, the X30 minimizes reliance on upstream equipment, ensuring decoding performance remains unaffected. Its DSP platform offers four DSD and three PCM digital filters, alongside a NOS mode, allowing a pure signal path with independent left and right channel processing for enhanced musicality. On the streaming side, the X30 integrates seamlessly with Roon Bridge, AirPlay, UPnP, NAA, and bridge mode, making it a versatile centerpiece for both local and networked playback.



Supported By Celaudio For Redefining The Audio Output Of The X30

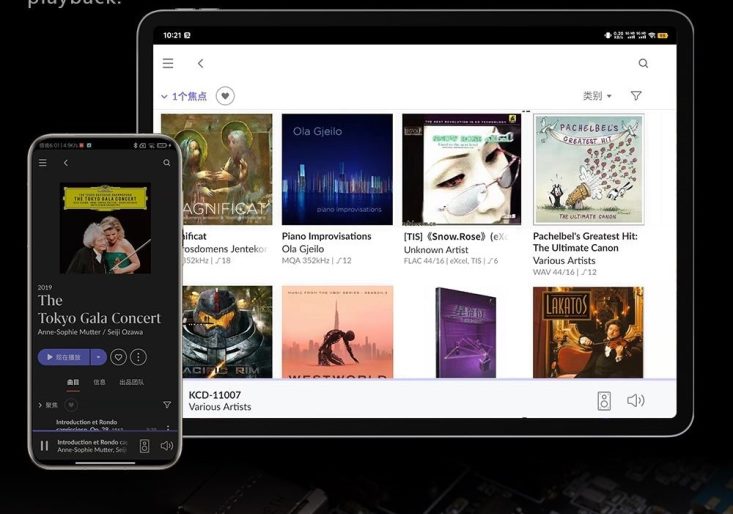

The Gustard X30 integrates Celaudio, an advanced audio processing technology designed to reduce distortion introduced by hardware limitations and restore sound to its most natural form. Celaudio intelligently disables unnecessary bridge systems during playback, optimising system resources and maximising playback efficiency. At its core lies the Celware 3.x music playback system, a Linux-based platform purpose-built for high-fidelity audio. By combining hardware and software optimisations, this system minimises data forwarding delays and jitter, while enhancing playback stability and resolution. The result is a seamless listening experience that brings out the full potential of high-resolution audio.

Passive Analog Preamp Stage with Independent Voltage Stabilisation

The Gustard X30 features a passive analogue preamp stage that employs an R2R relay-based volume control, ensuring precise adjustment without compromising sonic integrity. For users who prefer to bypass the preamp, the X30 offers a direct output option, making it highly versatile for integration with active studio monitors or dedicated power amplifiers. Volume can be conveniently managed via the supplied remote control, allowing for seamless operation.

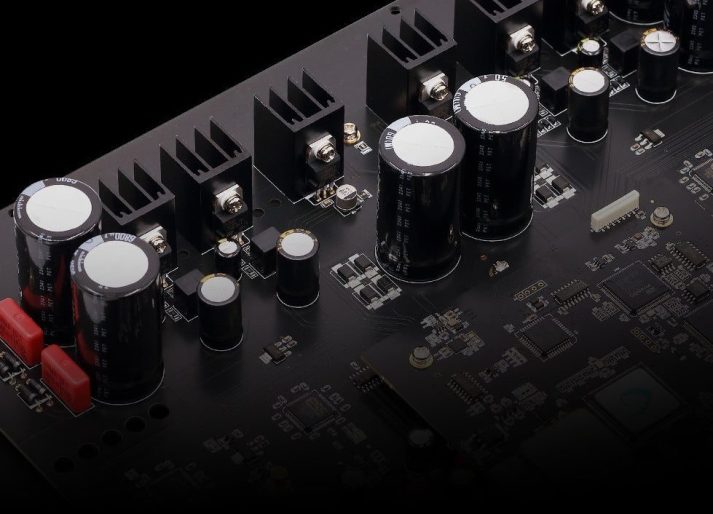

To further elevate performance, Gustard has implemented an independent voltage stabilisation stage designed to minimise interference and preserve signal purity. This is complemented by a fully isolated power supply with dedicated grounding, delivering exceptionally clean audio reproduction with minimal distortion—hallmarks of the X30’s commitment to high-fidelity playback

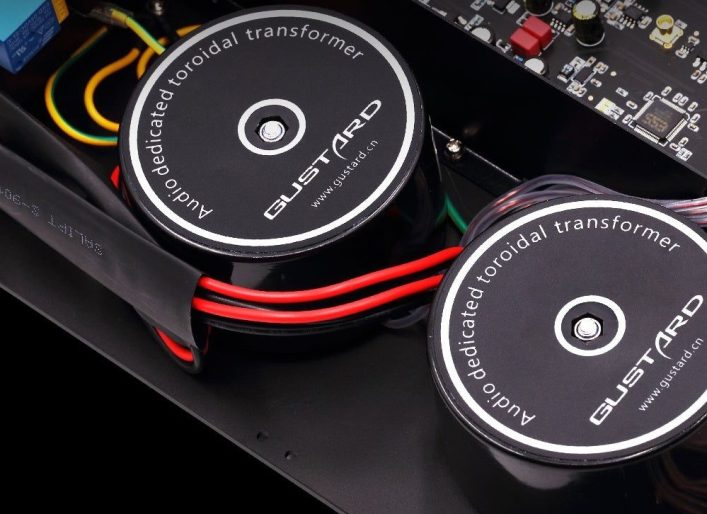

Group Independent Power Supply With Toroidal Transformers

The Gustard X30 employs the ES9311Q regulator alongside a multi-group, independent power supply design to deliver ultra-low noise regulation and ensure a stable, clean energy source for every circuit. This approach minimises interference and preserves audio purity. Further enhancing performance, the unit is equipped with two high-quality toroidal transformers dedicated separately to the digital and analogue stages, ensuring each section receives uncompromised, interference-free power for optimal sonic results



Low latency XMOS XU216 and an FPGA programmable logic chip

Discrete Class A Audio Circuit With IV Parallel Connections For Enhanced Performance

At the heart of the Gustard X30 lies a discrete Class A analogue LPF stage, purpose-built for the ESS flagship DAC chips. Unlike conventional integrated circuits, this design employs multiple IV parallel connections, offering greater flexibility and fine-tuned adjustment across varying parameter levels. A built-in OCXO constant-temperature crystal oscillator ensures rock-solid stability by minimising frequency drift caused by external temperature fluctuations. This high-performance architecture not only controls distortion with precision but also enables alternative decoding pathways, giving the X30 remarkable versatility in shaping sonic character while elevating overall performance.

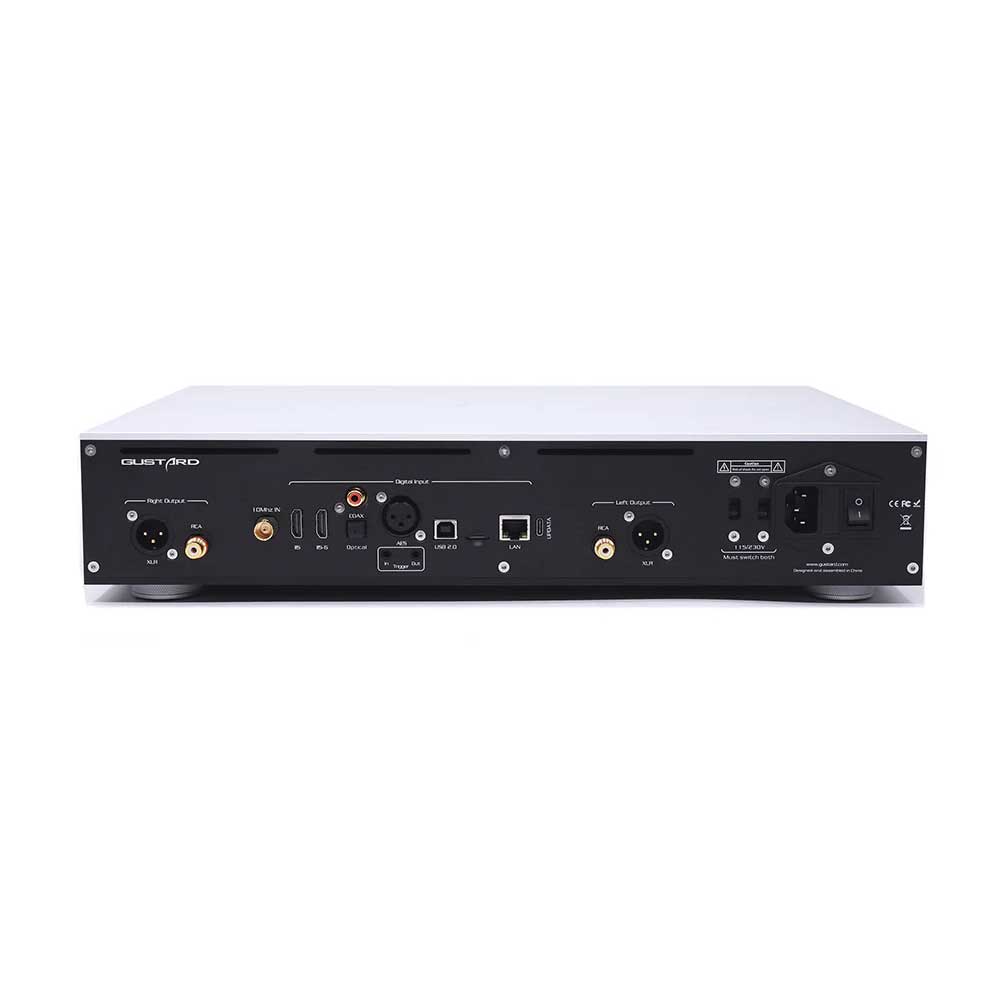

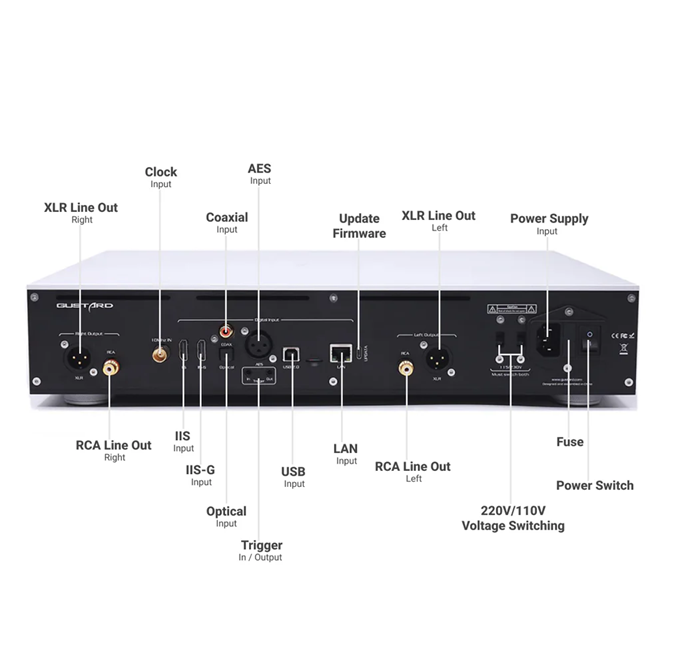

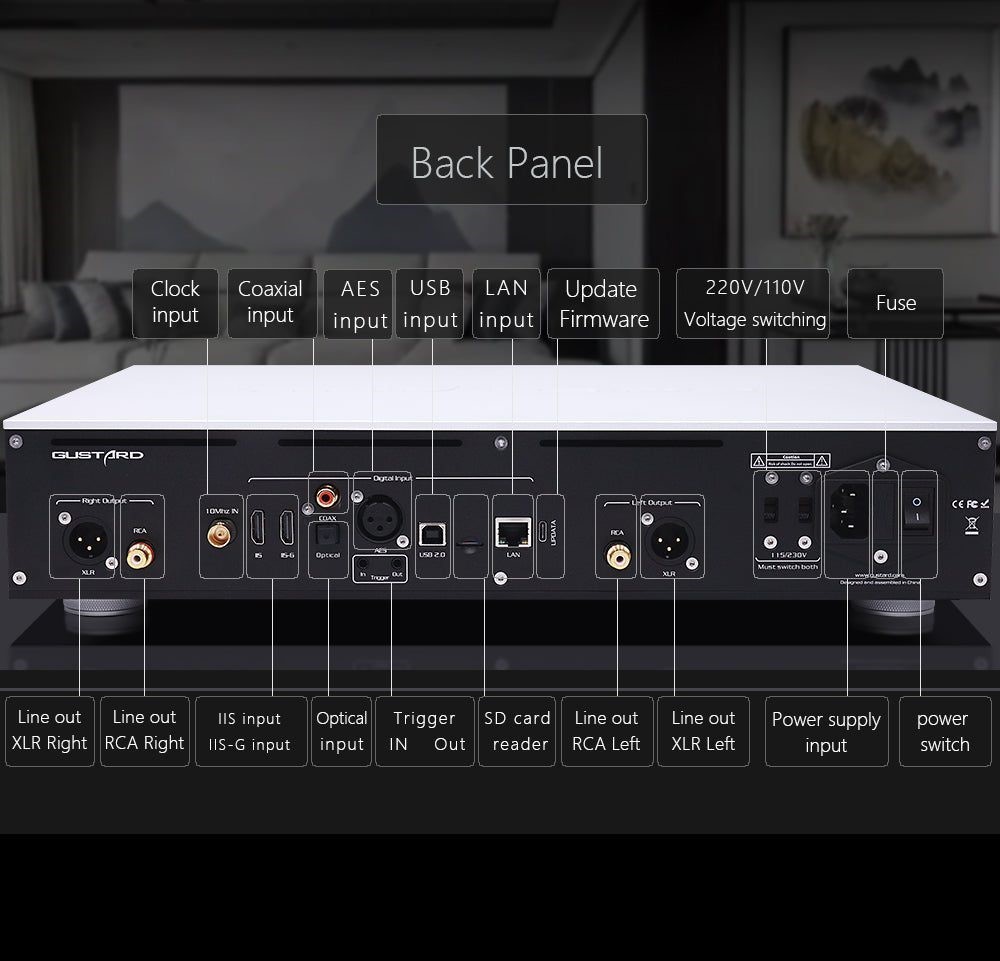

Designed for true music lovers, the Gustard X30 delivers lifelike, high-resolution audio with ultra-low latency. Powered by the XMOS XU216 and FPGA system, it ensures smooth, distortion-free playback. With versatile connections including USB, LAN, coaxial, optical, AES, XLR, and RCA outputs, the X30 integrates effortlessly into any setup, offering immersive sound and flexible connectivity for every listening experience.

DAC Chip – ES9039SPRO Quad Core

Input
  • USB
  • Coaxial
  • Clock
  • AES
  • IIS
  • IIS-G

Output
  • XLR
  • RCA

Digital Input
  • LAN Support Protocol : Roon, Airplay, Upnp, NAA, Spotify (Configuration web page can be configured to open and close the protocol, can be upgraded online with one click)
  • LAN Speed : 100 / 1000Mbps
  • 10M Clock (BNC) : Input Impedance 50 Ohm, 0dBm- 20dBm, CMOS Square Wave 0.2V-3.3V, Sine wave 0.5V-3.3V

Analog Output
  1. Frequency Response : 20-20kHz/+-0.2dB
  2. Dynamic Range : 130dB
  3. Signal to Noise Ratio : >129dB
  4. Channel Crosstalk : – 139dB@ 10kHz
  5. THD+N : <=0.0001% @1kHz
  6. IMD : ≈0.001% @ -1dbfs
  7. RCA Output Level : 2.5Vrms (VOLUME FIXED)
  8. RCA Output Impedance : 100Ω
  9. XLR Output Level : 5.1Vrms (VOLUME FIXED)
  10. XLR Output Impedance :
  11. Interface Definition : American Standard (1 ground, 2 hot, 3 cold)

Other Parameters
  • AC Power Supply : AC115V / 230V 50 / 60Hz;
  • Power Consumption : < 30W

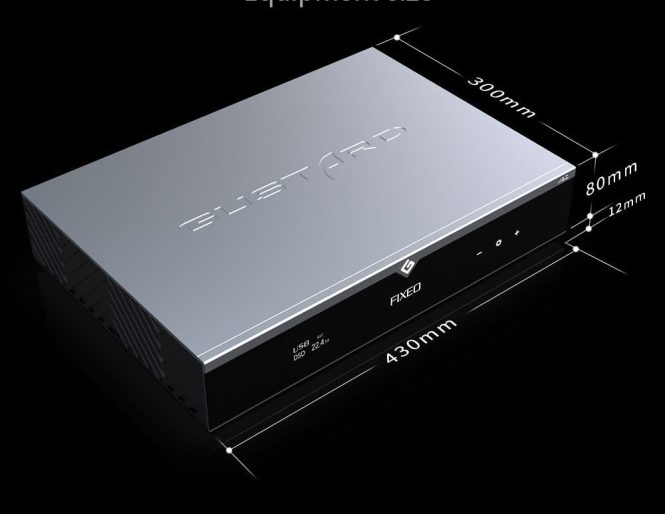

  • Size : W430 * D300 * H80 (including foot 92)mm
  • Package Size : L530 * W400 * H180mm
  • Weights With Package : 10KG

Box Contents
1. Gustard X30
2. Power Cable * 1
3. Remote control *1












Headquartered in Shenzhen, one of China’s foremost technology hubs, Gustard is a company driven by research and development, with a mission to deliver high-performance audio products at prices that remain accessible to music lovers.

Over the years, Gustard has built a strong reputation in the audiophile community, particularly for its desktop audio solutions with a focus on headphone listening. Its product portfolio spans headphone amplifiers, DACs, master clocks, and, more recently, integrated streaming devices.

Though often regarded as one of the more secretive and enigmatic brands in the audio industry, Gustard has consistently demonstrated a deep technical mastery of digital audio. Their designs frequently feature premium components such as toroidal transformers, dual DAC chips in a dual-mono configuration, and fully discrete Class-A output stages — hallmarks of their meticulous engineering approach.

Additional Information

Color

Silver, Black
